    M-OTDR-400 series

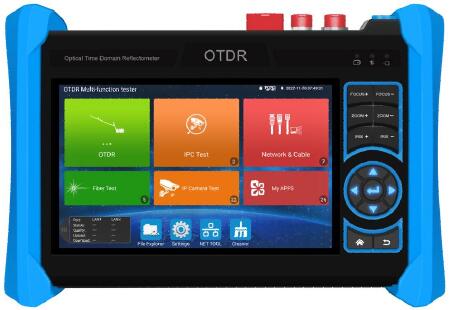

5.4 inch OTDR Tester M-OTDR-403 with wavelength 1610nm, dynamic range 28dB

Wavelength 1610nm, max test range 100KM
Dynamic range 28dB, SOR standard data saving
Optical power meter and visual fault locator
IP camera test, support onvif, 4K, 8K, H.264 and H.265
Cable tracer app with toner wand, RJ45 cable TDR test
DC12V 3A, DC24V 2A and 48V / 25.5W PoE power output
Support 4K 30 FPS HDMI output

Specification:

Specification

Model Number

M-OTDR-403

Size & Display

5.4 inch touch screen with retina display, 1920*1152 resolution

Network Port

Dual 1000M LAN port, 10/100/1000M auto adapt

WIFI

Built in 2.4G WIFI, speeds150M, display wireless camera image

H.265 mainstream test

H.265 & H .264 IP, 8K video display via mainstream

IP camera test

Support 500 brands IP camera test

IP discovery

Auto-scan the whole network segment IP address

Zoom Image

4x zoom, enlarge image, screen snapshot, save, view and record and playback

RJ45 cable TDR test

Test cable pair status, length, attenuation, reflectivity, and impedance, skew etc. measurement range 180M.

HDMI output

4K 30 FPS HDMI output

Power output

48V PoE / 24V2A / 12V 3A / 5V 2A power output

UTP cable test

Test UTP cable connection status and display on the screen. Read the number on the screen. detect the near-end, mid-end and far-end fault point of RJ45 cable connector, also can test shield cable

Data monitor

Captures and analyzes the command data from controlling device, also can send hexadecimal

Network test

Trace route, Link monitor, DHCP server, port flashing, Ping test

Cable tracer

Search BNC cable, network cable and telephone cable from the mess cables. Cable tracer and UTP cable test app in the same interface, also can search shield cable

Electroscope

Voltage range

AC12-1000V

Frequency

50/60Hz

Alarm type

Sounds and light double alarms

Level

CAT.III 1000V / CAT.IV 600V;CE

PoE Voltage test

Measurement POE switch or PSE power supply voltage and cable connection status

Visual fault locator

10mW visual fault locator with 650nm wavelength, emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 8KM

Optical power meter

Wavelength: 1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range: -70 +10 dBm, for optical power testing and Fiber link loss relative measurement

Power

External power supply

DC 12V2A

Battery

Built-in 7.4V Lithium polymer battery, 5200mAh

Rechargeable

After charging 2.5 hours, normal working time 11 hours

Parameter

Operation setting

OSD menu, select your desired language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, Deutsch, Serbian, Czech, Vietnamese etc

Auto off

5-30 (mins)

Working environment

Working Temperature

-10 --- +50

Dimension

220mm x 150mm x 46mm (Tester); 320mm x 290mm x 98mm (box)

Weight

846g (Tester); 2050g (Tester with spare parts, black package, box)

OTDR technical data

Wavelength (nm)

1610nm

Dynamic ange(dB)2

28dB

Pulse width (ns)

5,10,20,30,50,80,160,300,500,800,1000,2000,4000,6000,10000,20000

Testing distance

≤100 Km

Event blind zone (m)3

≤2.2m

Attenuation blind zone (m)3

≤15m

Linearity (dB/dB)

±0.05 dB/ dB

Loss threshold (dB)

0.05

Loss resolution ratio (dB)

0.01

Sampling resolution ratio (m)

0.125~8

Sampling point

32K

Distance uncertainty (m)

±(1 m + 5×10-5× distance + sampling interval)

Distance scope (km)

0.5,1,2,5,10,25,50,100,200

Typical real-time refreshing duration

1s

Measurement duration

5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable

Interface type

FC-PC

Remarks:

1. The technical specification describes the ensured performance of the instrument when using typical PC model connector to measure, without considering the uncertainty caused by optical fiber refractivity.

2. Dynamic range is the data measured under the condition of the maximum pulse width and 3 minutes of average time. Dynamic range is the data measured under the condition of 200km/20000ns/3min.

3. Measuring conditions of blind zone: reflection event is within 5Km, reflection strength is 45dB. Measured by the minimum pulse width.
