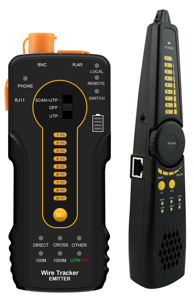

Cable Tracer Prober M-CTP-240A
Cable tracer, can search UTP cable, BNC cable from mess cable
Cable tracer and UTP cable test at the same time
Identify cable type: 100M/1000M, straight/cross/other
UTP/STP/RJ45/RJ11 cable scan and continuity testing
Identify the status in the working telephone line: standby, ringing and off-hook
Quickly detect the near-end, mid-end and far-end fault point of RJ45 cable connector
Shielded cable and shielding layer continuity test
Detect the short circuit of cable
Detect the link continuity of the switch port
Secondary code digital mode, decisively rejects noise and false signals, locate cables quickly and easily
UTP port support max 60V withstand voltage, the wire can be traced directly in connection with PoE switch
PD powered detection: detect whether the power output of the POE switch is normal and detect the pins used for power supply
Specification:
Specification:
| Model Number | M-CTP-240A |
| Emit signal | Digital signal (rejects noise and false signals ) |
| Cable type | J45 Twisted pair，RJ11 telephone line, BNC cable etc. |
| UTP cable test | The digital “1-8” for cable sequence shielded cable and shielding layer continuity indicator, check cable type indicator: straight/cross/other, 100M/1000M Network cable test, and near-end, mid-end, far-end continuity testing |
| Test of RJ45 cable connectors | Check wire continuity of both RJ45 cable connector |
| PD (powered) test | PoE switch power supplying status test and check the pins used for power supply |
| LED lamp | Short press On /Off Led Light |
| Silent mode | Long press key “Mute” to switch silent mode, find cable through indicator |
| Audio output | Support external audio output |
| External power supply | Two AA battery |
| Working Temperature | -10℃ --- +50℃ |
| Working Humidity | 30% --- 90% |
| Emitter Dimension | 152mm x 62mm x 27mm /0.12KG |
| Receiver Dimension | 218mm x 48mm x 32mm /0.1KG |
Packing kits include:
Wire tracker emitter
Wire receiver
RJ45 cable
RJ11 cable
RJ11 crocodile clip cable
Tool bag
Packing box
