    HD CVBS Tester

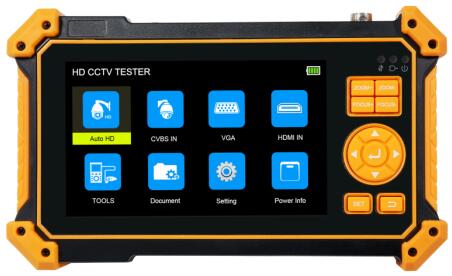

5 inch HD camera tester M-HD-360B with analog, HD-TVI, HD-CVI, AHD, HD-SDI/EX-SDI, VGA input


Analog camera test

HD-TVI camera test, HD-CVI camera test, AHD camera test

EX-SDI, HD-SDI, 3G-SDI camera test

DC12V 1A power output

VGA input, support 1920 x 1200P 60FPS

Auto HD, auto recognize HD coax camera type and resolution
UTP cable test, detect the near-end, mid-end and far-end fault point of the network cable crystal head

Specification:

Model number

                    M-HD-360B

Screen

Display

5 inch TFT-LCD screen, 800*480 resolution

Video Mode

CVBS

1 channel BNC input, NTSC/PAL (Auto adapt)

PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

HD Coaxial test

8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu

8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu

8MP AHD test, 3840 x 2160P 15FPS, UTC control / call OSD menu

8MP EX-SDI, HD-SDI, 3G-SDI, UTC control / call OSD menu

Auto HD app, auto recognize HD coax camera type and resolution, support coaxial PTZ & call OSD menu

VGA input

1 channel VGA input, support 1920 x 1200P 60FPS. The resolution as follow: 1920 x 1200P 60FPS / 1920×1080P 60FPS / 1792×1344P 60FPS / 1680x 1050P 60FPS / 1600x1200P/900P 60FPS / 1440x900P 60FPS / 1360x768P 60FPS / 1280x1024/960/800/768/720P 60FPS / 1152x870P 60FPS / 1024x768P 60FPS / 800x600P 60FPS / 600x480P 60FPS.

Power output

DC12V 1A output

DC12V 1A power output, supply temporarily power for the camera

DC5V 1A output

DC5V 1A power output, support reading USB disk

Cable test

UTP cable test

Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head

Audio test

1 channel audio signal input, test the audio whether is normal

Power management

Display DC 12V output voltage and power in real time

Data monitor

Captures and analyzes the command data from controlling device, also can send hexadecimal

Power supply

DC 5V 2A

Battery

Built-in 3.7V Lithium ion battery, 5200mAh

Rechargeable

After charging 4 hours, normal working time 6 hours

Operation setting

OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc

Auto off

1-30 (mins)

Working Temperature

-10 - +50

Working Humidity

30% - 90%

Dimension

183mm x 110mm x 40mm (Tester); 255mm x 140mm x 98mm (Colour box)

Weight

320g (Tester); 1030g (Tester with spare parts, black package, box)
