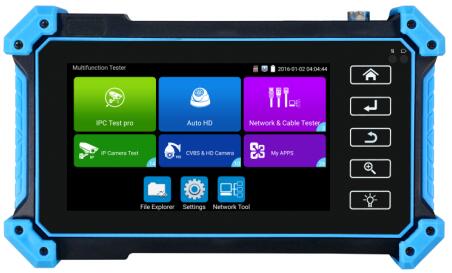

5 inch IP camera tester M-IPC-520B with analog, HD-TVI, HD-CVI, AHD, HDMI input, VGA input
Analog camera test
IP camera test, support onvif, 4K, H.264 and H.265
HD-TVI camera test, HD-CVI camera test, AHD camera test
DC12V 3A, 48V PoE power output
RJ45 cable TDR test, cable quality test
VGA input, support 1920 x 1200P 60FPS
HDMI input, support 4K 30FPS
Auto HD, auto recognize HD coax camera type and resolution
UTP cable test, detect the near-end, mid-end and far-end fault point of the network cable crystal head
Specification:
Model number
|
M-IPC-520B
|
Screen
|
Display
|
5
inch IPS touch screen, 1920x1080 resolution
|
Video Mode
|
CVBS
|
1 channel BNC input, NTSC/PAL
(Auto adapt)
|
PTZ control, RS485 control,
Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P,
Samsung, Panasonic etc
|
IP Camera Test
4K / H.265 / H.264
|
IP
Discovery / Quick ONVIF / IPC test / RTSP play / Client APK
|
Rapid Video
|
Auto view the video, create
testing report
|
Hikvision test tool
|
support batch activate Hikvision
cameras and modify IP address, modify password etc. Self-defined modify
channel name, can quickly change H.264 and H.265 video, open wide dynamic
mode. Factory restore, etc.
|
Dahua test tool
|
support batch activate Dahua
cameras and modify IP address, username and password. Self-defined modify
channel name.
|
HD Coaxial test
|
8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu
|
8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu
|
8MP AHD camera test, 3840 x
2160P 15FPS, UTC control / call OSD menu
|
Auto HD app, auto recognize HD
coax camera type and resolution, support snapshot, video record &
playback, coaxial PTZ & call OSD menu
|
HDMI input
|
1 channel HDMI input, support 4K 30FPS. The
resolution as follow:
4K_3840 x 2160/ 2K_2560 x 1440P / 1920×1080P / 1920×1080i /
720×480P / 720×576P / 1280×720P / 1024×768P / 1280×1024P / 1280×900P /
1440×900P, etc
|
VGA input
|
1 channel VGA input, support 1920 x 1200P 60FPS. The resolution as follow:
1920 x 1200P 60FPS / 1920×1080P 60FPS / 1792×1344P 60FPS / 1680x 1050P 60FPS
/ 1600x1200P/900P 60FPS / 1440x900P 60FPS / 1360x768P 60FPS / 1280x1024/960/800/768/720P
60FPS / 1152x870P 60FPS / 1024x768P 60FPS / 800x600P 60FPS / 600x480P 60FPS
|
Zoom Image
|
4x zoom, to enlarge image, screen
snapshot, record, save, view and record and play back
|
Power output
|
12V / 3A power
|
Output DC12V/3A power out,
supply temporarily power for the camera
|
PoE power output
|
48V PoE power output, max
power 25.5W
|
Cable test
|
UTP cable test
|
Test UTP cable connection
status and display on the screen. Can detect the near-end, mid-end and
far-end fault point of the network cable crystal head.
|
RJ45
TDR cable test
|
Test
cable pair status, length, attenuation, reflectivity, impedance, skew, can
create test report. measurement range 180M
|
Tester Play
|
Screen projection: Tester, mobile phone and PC display at the same time (For android version mobile phone)
|
Network test
|
Trace
route, Link monitor, DHCP
server, port flashing, Ping test
|
Wi-Fi
|
Built
in WIFI, speeds 150M, display wireless camera image
|
Audio test
|
1
channel audio signal input, test whether sound normal.
|
Power management
|
Display DC 12V input & output
voltage and power in real time
|
Data monitor
|
Captures
and analyzes the command data from controlling device, also can send
hexadecimal
|
Power supply
|
DC 12V 1A
|
Battery
|
Built-in 7.4V Li-ion battery, 3350mAh
|
Rechargeable
|
After charging 3-4 hours, normal working
time 6 hours
|
Operation setting
|
OSD menu, select your desired language:
English, Chinese, Korean, Russian, Italian, French, Polish, Spanish,
Japanese, Deutsch, Turkish, Portuguese, Czech etc
|
Auto off
|
1-30 (mins)
|
Working Temperature
|
-10℃ - +50℃
|
Working Humidity
|
30% - 90%
|
Dimension
|
183mm x 110mm x 40mm (Tester); 255mm x 140mm x 98mm (Colour box)
|
Weight
|
320g
(Tester); 1030g (Tester with spare parts, black package, box)
|
|
