    Video Converter

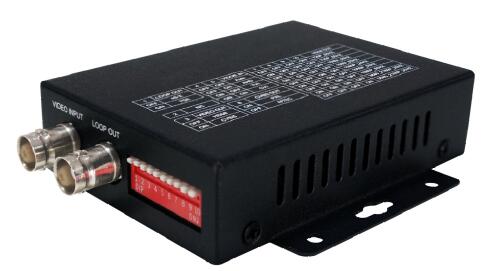

4K HD video converter M-CVT-HD4 is designed for HDMI video transmission and HD loop out, support 4K CV/TVI/AHD video Input, 4K Image loop output, 4K HDMI output. Auto match HD input, indicator visual display input resolution.

Support up to AHD 8MP, TVI 8MP, CVI 8MP test
CVI/TVI/AHD+CVBS to HDMI, HDMI output support 4K 30FPS
Auto recognition 720P/1080P/3MP/4MP/5MP/8MP resolution
Indicator visual display input resolution
One channel AHD/TVI/CVI/CVBS loop out, CVBS out



Specification:

Model

M-CVT-HD4

HD coaxial input

TVI (8MP) input

One channel TVI in BNC input, support
4K/8MP_3840x2160p 12.5/15fps,   5MP_2592x1944p 12.5/20fps,  4MP_2688x1520p 15fps

4MP_2560x1440P 15/25/30fs,   3MP_2048x1536p 18/25/30fps,  1920x1080p 25/30fps

1280x720p 25/30/50/60fps.  Loop out support UTC control and call OSD menu.

CVI (8MP) input

One channel CVI in BNC input, support

4K/8MP_3840x2160p 12.5/15fps,   6MP_2880x1920p 20fps  5MP_2592x1944P 20fps,
5MP_2880 x1620P 25 fps,    4MP_2560x1440p 25/30fps
  1920x1080p 25/30fps
1280x720p 25/30/50/60fps.  Loop out support UTC control and call OSD menu.

AHD (8MP) input

One channel AHD in BNC input, support

4K/8MP_3840x2160p 15fps,  5MP_2592x1944p12.5/20fps,   4MP_2560x1440p 15/25/30fps,

3MP_2048x1536p 18/25/30fps  1920x1080p 25/30fps  1280x720p 25/30fps.
Loop out support UTC control and call OSD menu.

CVBS input

Support NTSC and PAL in BNC input

HDMI / CVBS / Loop Out

4K HDMI output

3840x2160p 25/30HZ, 1920x1080p 24/50/60HZ, 1920x1080i 50/60 HZ, 1280x720p 50/60 HZ

Loop out

The resolution same as the AHD CVI TVI CVBS input

CVBS output

Support NTSC and PAL

Port

HD Coaxial input

BNC

Loop out

BNC

HDMI output

HDMI-Type A

CVBS output

BNC

Others

External power supply

DC12V1A

Indicator

Red: Power working indicator

Green: Video in signal output

Working Temperature

-10℃ --- +50℃

Working Humidity

30%-90%

Dimension

120mm x 95mm x 25mm (Converter); 190mm x 130mm x 40mm (box)

Weight

193g (Converter); 381g (Converter with spare parts, box)
