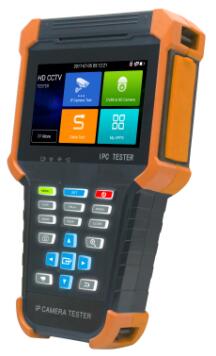

3.5 inch cctv tester M-35HD-T9 with HD-TVI, HD-CVI, HD-SDI, AHD and analog camera testing
l 3.5 inch screen display, 480(RGB) x 320 resolution
l Test both analog camera, HD-TVI camera, HD-CVI camera, HD-SDI camera and AHD camera
l LCD screen brightness / contrast / color saturation adjustable
l Automatically adapts and displays the video format of NTSC / PAL
l HD-TVI video surveillance testing
l HD-CVI video surveillance testing
l HD-SDI video surveillance testing
l AHD video surveillance testing
l Enhanced Color bar generator
l HD coaxial test, analog PTZ control, color bar generator shortcut key
l F1, F2 user-defined key
l PTZ control and PTZ protocol analysis
l PTZ address scan, search up the ID of PTZ camera
l Multi-protocol. Supports more than thirty PTZ protocols. Such as PELCO-P, PELCO-D, SAMSUNG etc.
l PTZ protocol analysis, control protocol command displays to check RS485 transmission
l PTZ control. Pan/tilt the PTZ unit, zooms in/out the lens, adjusts the focus, aperture and set the preset position
l Network cable and Telephone cable testing, display sequence of connection and the number of LAN cable
l Support RS232/RS485, rate 600 ～ 115200bps adjustable
l Built in Lithium Ion Polymer Battery (3.7V DC 3000mAh)
l The device employs advanced power control and protection circuit.
l It can last 11 hours for normal use after charging for 3-4 hours
l Image display and data control integration
l Audio input test, test the audio signal from pickup devices
l Handheld HD CCTV tester, easy to carry and operation
Specification:
Model Number
M-35HD-T9
Signal mode
NTSC/PAL (Auto adapt)
Display
3.5 inch digital TFT-LCD, 480（RGB）x 320 resolution
LCD
Brightness, Contrast, Saturation adjustable
Video IN/OUT
1 channel BNC Input & 1 channel Output
Video Output Mode
1.0 Vp-p
Communication
Support RS232 and RS485
PTZ Protocol
Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, etc.
Baud Rate
600, 1200, 2400, 4800, 9600, 19200, 57600, 115200bps
Color bar generator
Output one channel PAL/NTSC color bar video signal for testing monitor or video cable (grey, red, green, blue, white and black color)
UTP cable test
Test UTP cable connection status and display on the screen. Read the number of the test box
DC12V power output
Output DC12V 1A power for camera
Audio input test
Test the pickup and other audio equipments on the front-end
RS485 data analysis
Captures and analyzes the command data from controlling device
TVI video signal test
1 channel HD-TVI input (BNC interface), support 720p 25 / 30 / 50 / 60fps, 1080p 25 / 30fps, coaxial PTZ control and calls up camera menu
CVI video signal test
1 channel HD-CVI input (BNC interface), support 720p 25 / 30 / 50 / 60fps, 1080p 25 / 30fps, coaxial PTZ control and calls up camera menu
AHD video signal test
1 channel AHD input (BNC interface), supports AHD 2.0 version, 720p 25, 30fps / 1080p 25,30fps, coaxial PTZ control and calls up camera menu
SDI video signal test
1 channel HD-CVI input (BNC interface), support 720p 25, 30, 50, 60fps / 1080p 25, 30, 50, 60fps / 1080i 50, 60fps
Power Adapter
DC 5V (1.5A)
Battery
Built-in 3.7V Lithium polymer battery, 3000mAh
Rechargeable
After charging 3-4 hour, working time lasts 11 hours
Low Consumption
Energy saving technology, the battery icon real-time display
Operation setting
English and other languages OSD menu
Auto off
5-60 (mins)
Keytone
On/Off
Dimension
190mm x 110mm x 50mm (Tester); 295mm x 240mm x 97mm (Colour box)
Weight
400g (Tester); 1550g (Tester with spare parts, black package, box)
