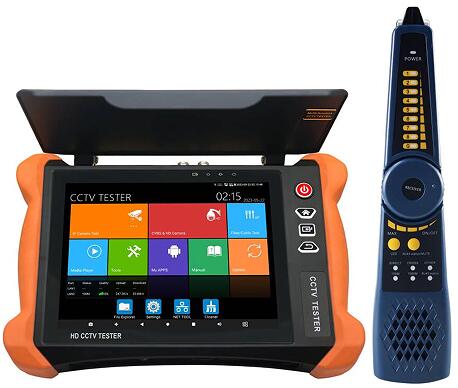

8 inch IP camera tester M-IPC-840G with analog, HD-TVI, HD-CVI, HD-SDI, AHD, multimeter, cable tracer app with toner wand, anti-sunlight and screen protecting cover, 90W PoE power output
Analog camera test
IP camera test, support onvif, 4K, 8K, H.264 and H.265
8MP TVI test, 8MP CVI test, 8MP AHD test
1080p HD-SDI, 3G-SDI and 8MP EX-SDI test
Cable tracer app with toner wand
DC12V 2A Power output / 90W PoE power output
RJ45 cable TDR test, cable quality test
HDMI input, support 1080p; HDMI output, support 4K
TDR cable open circuit and short circuit measurement
Digital Multimeter, Optical power meter and Visual fault locator
Video level meter for analog camera, TVI camera, CVI camera, AHD camera
Dual 1000M Ethernet ports, 4 channel Onvif video simultaneous display
Anti-sunlight and screen protecting cover
Specification:
|
Model Number |
M-IPC-840G |
| Signal System |
NTSC / PAL (Auto-Selecting) |
| Display |
8 inch retina touch screen, 2048*1536 resolution |
| IP camera type |
4K, 8K, H264, H265, Onvif, Onvif
PTZ, ACTi, Dahua IPC-HFW2100P, Hikvision, DS-2CD864-E13, Samsung SNZ-5200, Honeywell
HICXC-2300T, etc. Customized protocols are available |
| Rapid Video |
Auto view
the video, create testing report |
| Hikvision
test tool |
Pressing
just one key to activate hikvision camera , Image test, can modify the user
name, password and IP parameters |
| Dahua
test tool |
Dahua
camera test, modify the user name, password and IP parameters |
| Network test |
FTP Server, Static IP address, DHCP,
simultaneously test different segments´ IP cameras, Network bandwidth
testing, IP discovery |
| IP camera apps |
Support video management software to view
IP camera image, such as Hikvision ivms-4500, Dahua gDMSS HD Lite |
| RTSP |
Support RTSP to view IP camera image |
| LCD adjust |
Adjustable brightness, contrast, color of
LCD |
| HDMI input |
1 channel HDMI input, support
1080P |
| HDMI signal output |
1 channel HDMI
output, support 1080P |
| Network
port |
10/100/1000M
auto adjust, RJ45 |
| Wifi |
Built
in Wifi, speeds 150M, receive wireless camera image etc. create wifi hotspot |
| PoE power output |
PoE 90W power supply to IP camera |
| Video Input / Output |
1 channel BNC input & 1 channel BNC
looped output |
| Video Output Mode |
1.0 Vp-p |
| CVBS
loop test |
the tester send and receive color bar generator signal to check
BNC cable |
| Cable tracer app with toner wand |
Send the specific signal, easy to find out
the connected cable from messy cables |
| Video level meter for analog, TVI, CVI, AHD
cameras |
Peak video signal level, SYNC signal level,
Color bar chroma level measurement |
| Power Adapter |
15V DC, 1.6A input supply |
| Power output |
12V DC, 2A power output for camera |
| Audio input |
1 channel audio signal input to test pickup
device, 1 channel audio signal output to connect headphone |
| USB power output |
USB 5V 2A power output to mobile phone |
| Communication |
RS485 |
| Baud Rate |
150, 300, 600, 1200, 2400, 4800, 9600,
19200bps |
| Power Saving Features |
Sleep mode, |
| PTZ Address Scanning |
Scan for local PTZ address over data cables |
| Rechargeable |
2.5 hours charge, work for 10 hours |
| |
1 pcs Lithium Ion Polymer Battery; 11.1V,
3350mAh |
| Video Display |
Displays video signal from analog input |
| Video Signal |
Color bar generator for monitor testing |
| Cable Test |
Checks connections of UTP cables, RJ45
cable TDR test |
| PTZ Protocol |
Compatible with more than 30 protocols such
as PELCO-D/P, Samsung, Panasonic, TeleEye etc. |
| PTZ data Capture |
Reads and displays commands sent from
controllers |
| Image 4x zoom |
4x zoom image display and video out |
| Photograph |
Snapshot and save the image as JPG file and
screenshot |
| Video record |
Video recording and playback from the SD
card |
| Port Finder |
Find the connected PoE port quickly |
| IP scan |
Find out the connected IP camera or network
equipment´s IP address |
| Link monitor |
Check the IP address whether is occupied |
| |
Network and Ip camera´ping testing |
| PoE tester |
PoE voltage testing, PoE port flicker, PoE
link monitoring |
| Night Led |
Built Led lamp |
| SD card |
With 8G |
| Tester Play |
Screen projection：tester, mobile phone and PC display at the same time (For android
version mobile phone) |
| Drop-down menu |
User
can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc
in any interface |
| HD-TVI input |
8MP TVI camera test, 3840 x 2160, 15 FPS, image display, zoom,
video record and playback, coaxial PTZ control and call camera OSD menu |
| HD-CVI input |
8MP CVI camera test, 3840 x 2160, 12.5/15 FPS, image display,
zoom, video record and playback, coaxial PTZ control and call camera OSD menu |
| AHD input |
8MP AHD camera test, 3840 x 2160, 15 FPS, image display, zoom,
video record and playback, coaxial PTZ control and call camera OSD menu |
| HD SDI/EX-SDI input |
HD-SDI / EX-SDI camera test, support 1080P
50/60 FPS |
| Multimeter |
Voltage, current, resistance and capacitance
can be tested, continuity testing, diode testing |
| Optical power meter |
Testing the laser power of Video Fiber
Optic Transmission equipment and Fiber Optic Patch Cord. |
| Visual fault locator |
Check fiber optical´s breaking, cracking,
bending failure etc (SM and MM fiber) |
| TDR cable open circuit and short circuit
measurement |
Accurately measure BNC cable, network cable
and telephone cable´s break-point and short-circuits location. TDR breakpoint
will determine where the breakpoint is. And it can indicate the distance in
"meters" measuring in the tester. The farthest distance is 1200
meters. |
| Dimension |
270mm x 180mcm x 44mm (Tester); 345mm x 305mm x 100mm (Colour box) |
| Weight |
1200g (Tester); 3200g (Tester with spare parts, black package, box) |
